RepliSLS3D

Variants

The RepliSLS3D system is available in three different variants:

RepliSLS3D MAKE

This is the low-cost variant for maker-clubs and -organisations. The package contains the software with included support for all hardware and can be operated with already existing controllers and machinery. It is shipped with an USB-dongle which provides the License to use RepliSLS3D with all its features and functions.

This variant includes free software updates via our download section but no technical support (functionality of the software is fully described in our manual).

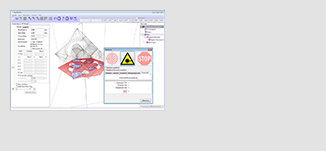

RepliSLS3D LIGHT

This package contains the software with included support for all hardware and can be operated with already existing controllers and machinery. It is shipped with an USB-dongle which provides the License to use RepliSLS3D with all its features and functions.

This variant includes free software updates via our download section and full technical support in case of problems or questions.

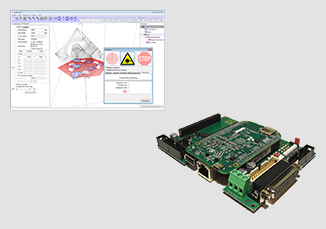

RepliSLS3D FULL

This package contains the software with included support for all hardware plus a fully featured laser scanner controller card which can be operated with all standard XY2-100 and XY2-100E scanheads, as well as with all common laser types. Contained 8 digital in- and outputs can be used to communicate with other external equipment.

Beside this controller card, variant "FULL" it is shipped with an USB-dongle which provides the License for operating RepliSLS3D without limitations.

This variant includes free software updates via our download section and full technical support in case of problems or questions.

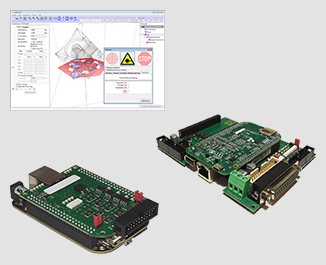

RepliSLS3D PRO

This package contains the software with included support for all hardware plus a fully featured laser scanner controller card which can be operated with all standard XY2-100 and XY2-100E scanheads, as well as with all common laser types plus a four-axis motion controller which can be used together with a power driver in order to control up to four stepper motors (e.g. to shift Z-position, to apply material between slices, ...). The 8 digital inputs and 8 digital outputs contained in laser scanner controller card can be used to communicate with other external equipment.

Both controllers are fully supported by RepliSLS3D software and integrate seamless into a typical production process.

Beside the two controller cards it is shipped with an USB-dongle which provides the License for operating RepliSLS3D without limitations.

This variant includes free software updates via our download section and full technical support in case of problems or questions.
